FOC-HR-17 Manual Swing Fire Hose Reel

Model: FOC-HR-17

Product Highlights

Heavy-duty frame features a rust-resistant powder finish.
Pivoting swing arm ensures snag-free hose payoff in any direction.
Includes an EN694 and LPCB compliant semi-rigid hose.
Optional nozzles support precise SHUT, JET, and SPRAY modes.
Supplied as a complete, ready-to-mount assembly.
The entire assembly can be customized to exact project specs.

Product Description

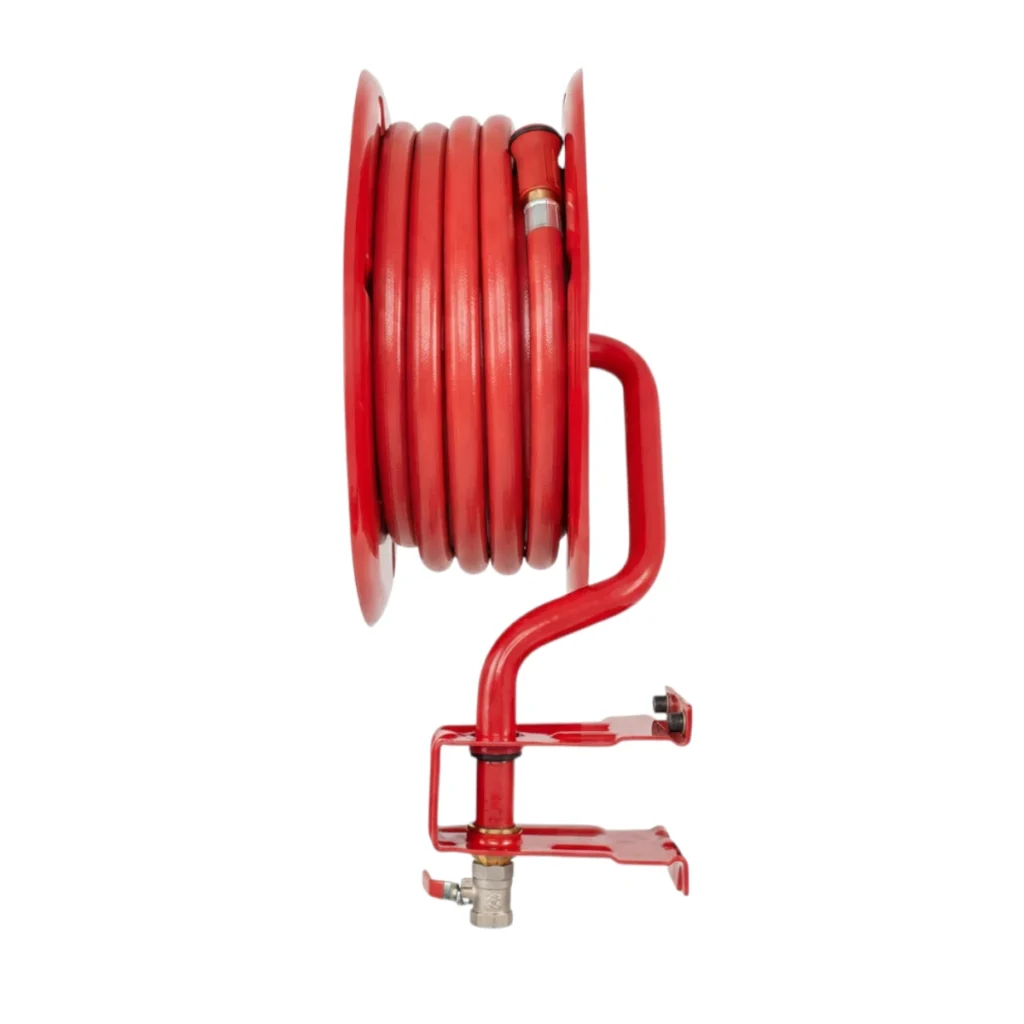

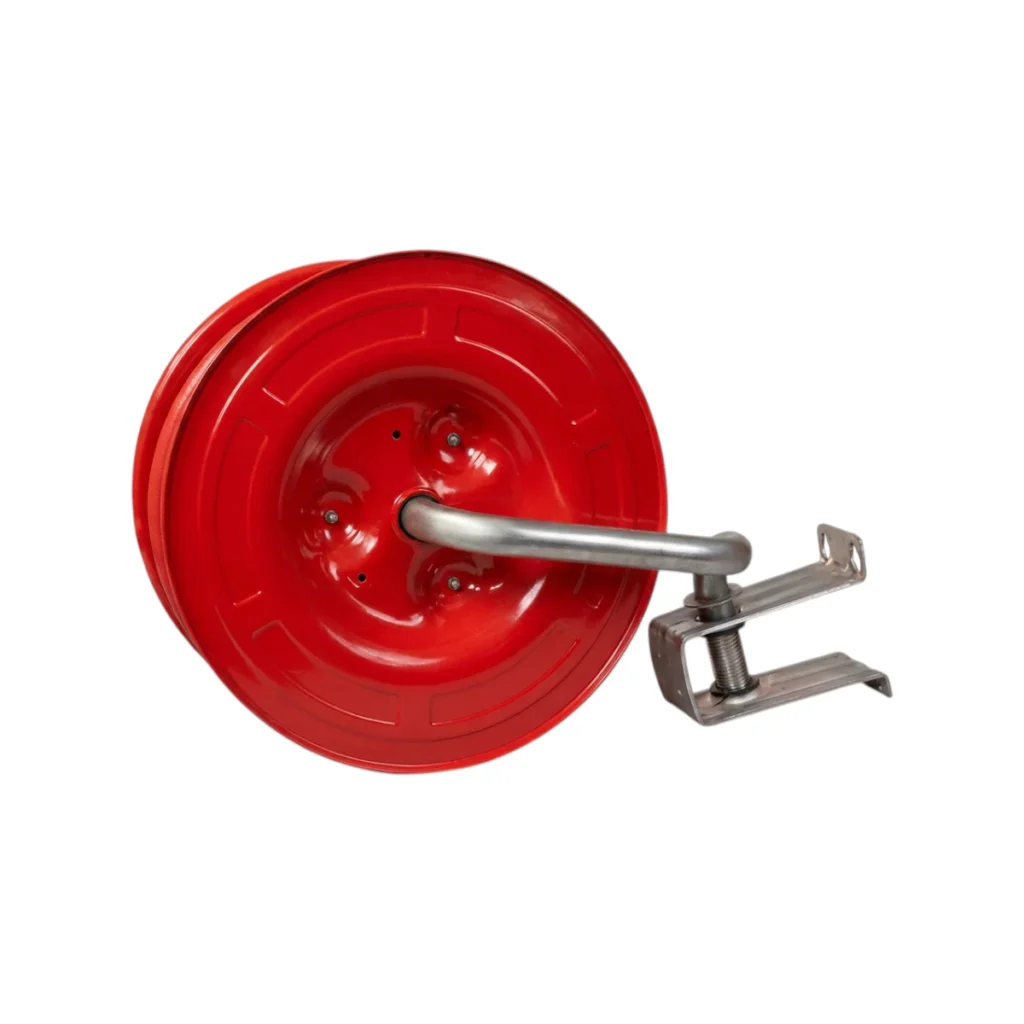

The FOC-HR-17 manual swing fire hose reel is a wall-mounted suppression unit engineered for semi-rigid hoses, delivering an immediate, controlled water supply for early-stage Class A fires. Featuring a heavy-duty swing arm mechanism, the drum pivots outward to enable smooth, snag-free hose payoff in any direction. Constructed from heavy-duty pressed steel discs and protected by a high-visibility, corrosion-resistant red powder coating, this rugged unit guarantees long-term reliability across commercial and industrial facilities. To satisfy exact project requirements, the entire assembly can be fully customized with tailored semi-rigid hoses, couplings, discharge nozzles, and control valves.

Technical Specifications

Capacity	1’’ x 30m, 1 1/4'' x 30m
Side Plate	565 / 600mm
Working / Test Pressure	12 Bar / 18 Bar
Material	Carbon Steel
Surface	Red Powder Coating
Reel Type	Manual, Swing
Mounting Type	Wall Mounted
