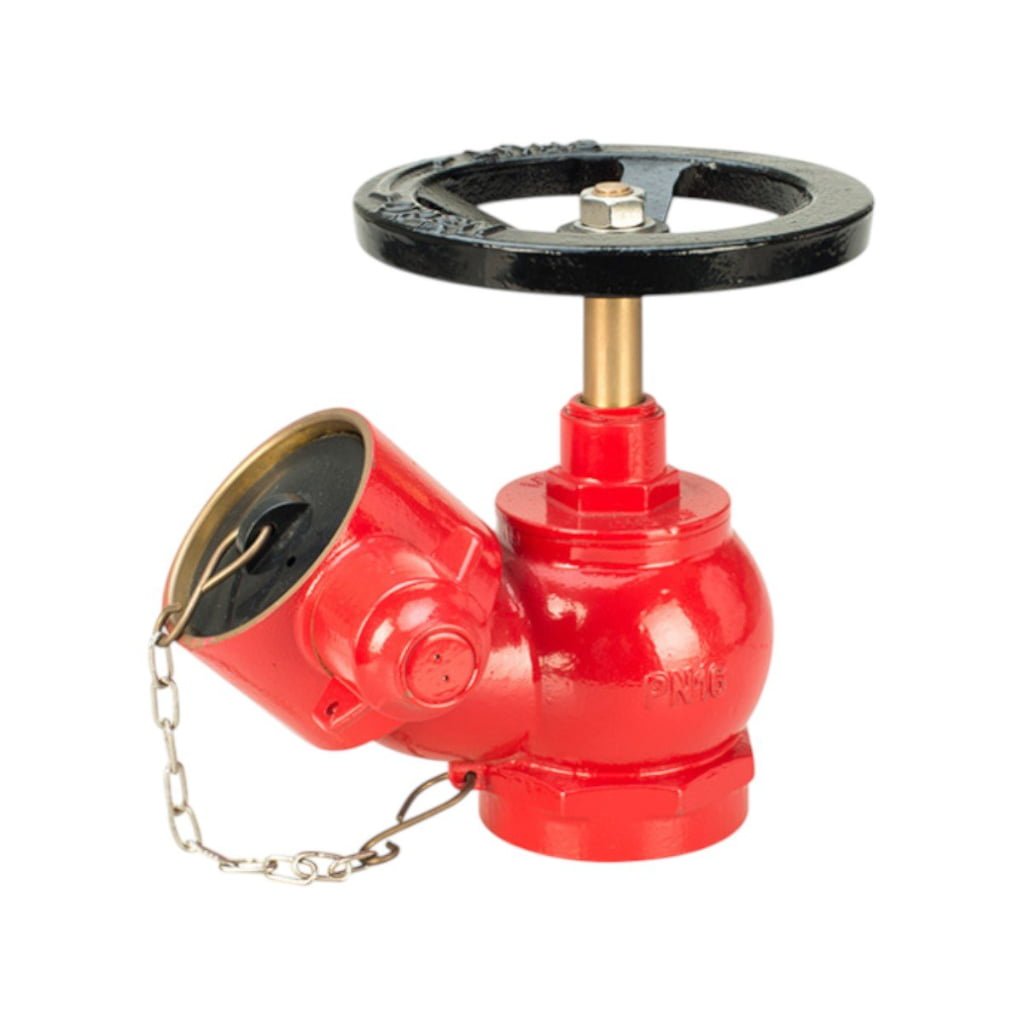

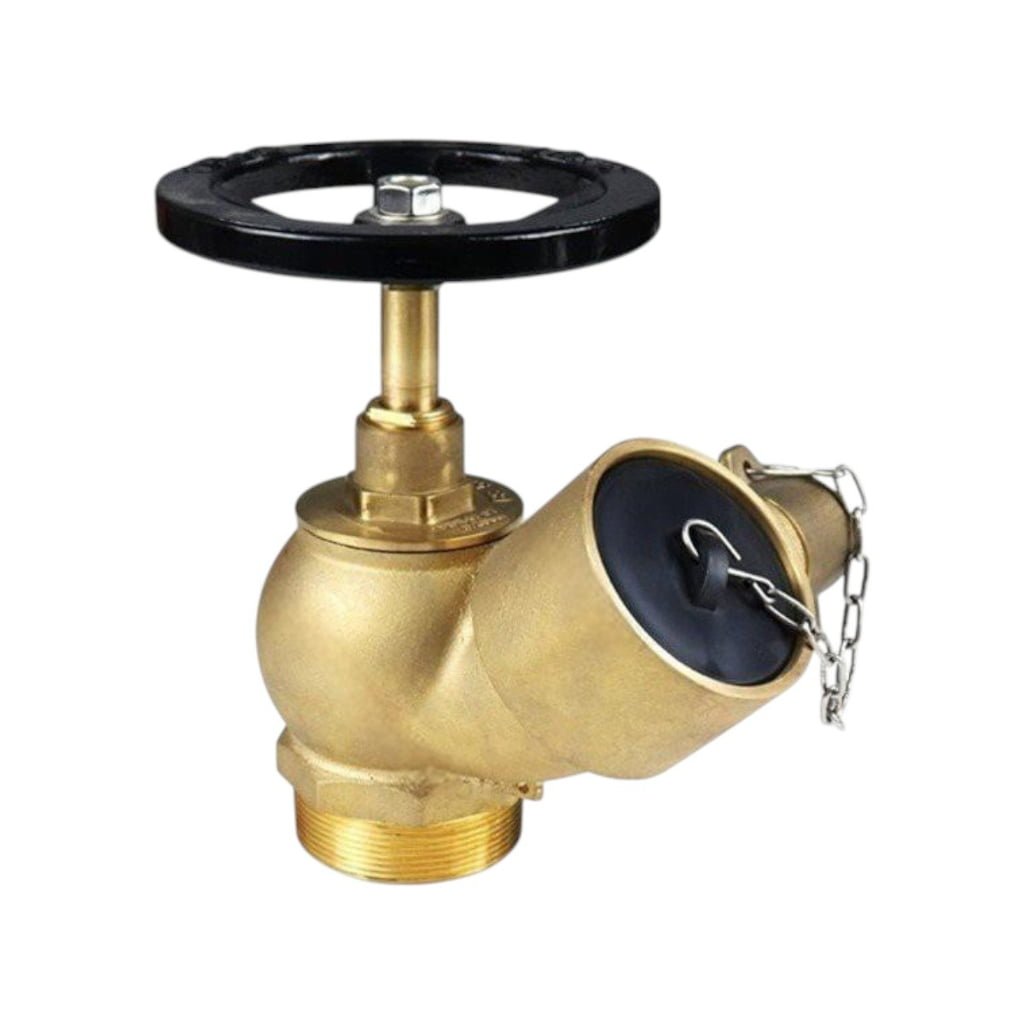

FOC-HV-L01 Oblique Landing Valve Screwed Inlet
Model: FOC-HV-L01
Product Highlights
- Oblique design and BS336 outlet for easy hose connection.
- Inlet options: screwed or flanged.
- Copper alloy valve body for enhanced durability.
- Surface treatment options: red coating, red painting, or natural brass.
Product Description
The FOC series wet type oblique landing valve is an essential component in fire hydrant systems, used in wet risers to connect fire hoses for firefighting. Its 45-degree angled outlet ensures a direct and efficient hose connection. The valve inlet is available in screwed or flanged types, catering to specific installation needs. Designed for low-pressure systems, it is commonly installed in tall buildings, providing easy water access for firefighting operations.
Technical Specifications
| Inlet | 2.5'' BSP Male / 2.5'' BSPT Male / 2.5'' BSP Female |
| Outlet | 2.5'' BS336 |
| Working / Test Pressure | 16 Bar / 24 Bar |
| Surface Treatment | Red Coated, Red Painted, Natural Brass |
