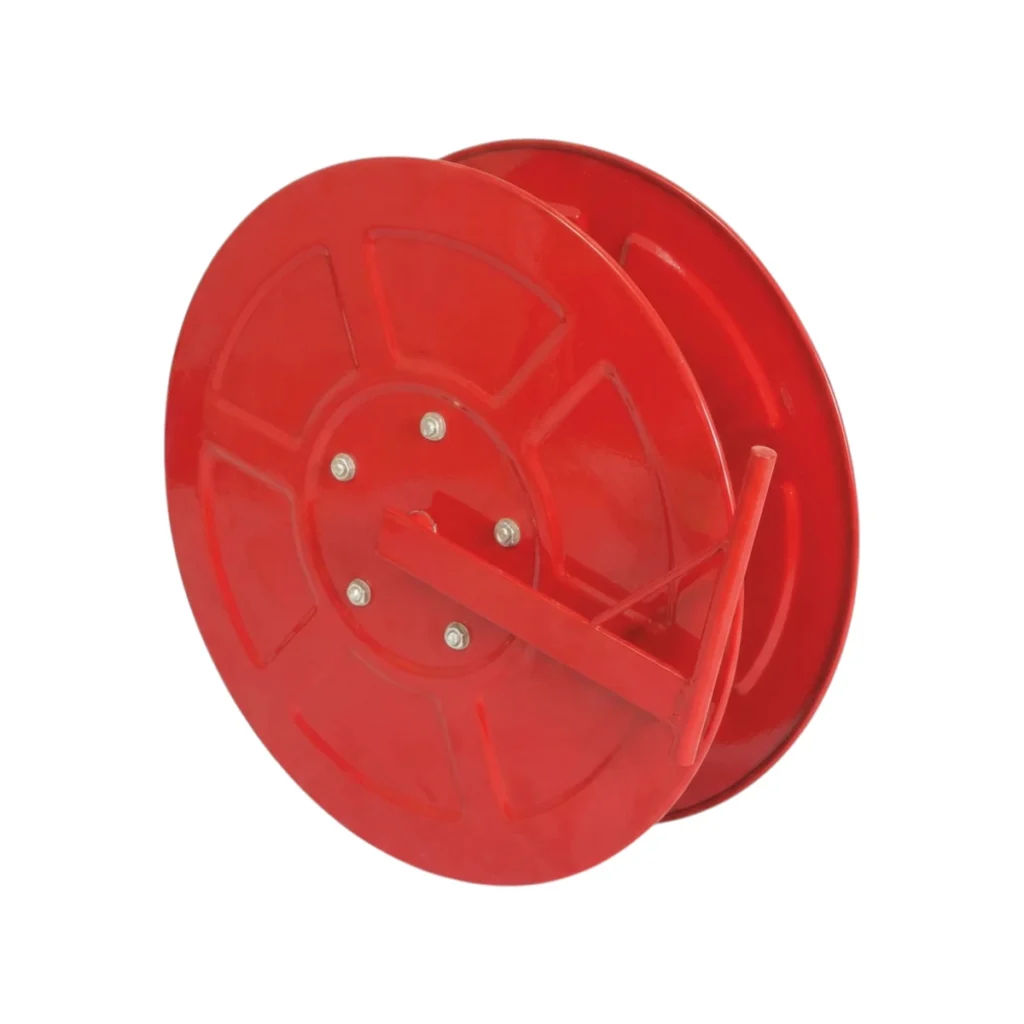

FOC-HR-08 Manual Swing Fire Hose Reel

Model: FOC-HR-08

Product Highlights

Heavy-duty frame with a rust-resistant powder finish.
Includes premium layflat hoses with LPCB, UL, or FM options.
Optional nozzles support precise SHUT, JET, and SPRAY modes.
Swing arm ensures snag-free hose payoff and folds flat when idle.
Supplied as a complete, ready-to-mount assembly with brackets.
The entire assembly can be customized to exact project specs.

Product Description

The FOC-HR-08 manual swing-type fire hose reel is engineered for wall or cabinet mounting to accommodate layflat fire hoses, delivering an immediate, controlled water supply to combat Class A fires (wood, paper, and textiles) in commercial and industrial environments. A space-saving swing-arm mechanism pivots the drum outward, enabling smooth, snag-free hose payoff in any direction. When idle, this assembly folds flat against the mounting surface, ensuring corridors and high-traffic aisles remain completely unobstructed. Constructed from robust 1.2mm steel plates with integrated stiffeners, the heavy-duty frame prevents metal distortion under tension. The unit is finished with a protective red powder coating for maximum corrosion resistance and high visibility. To satisfy exact engineering specifications, the entire assembly can be fully customized with specialized layflat hoses, couplings, discharge nozzles, and control valves.

Technical Specifications

Capacity	1 1/2'' - 2 1/2'' x 30m
Side Plate	480 / 525 / 550mm
Working / Test Pressure	16 Bar / 24 Bar
Material	Carbon Steel
Surface	Red Powder Coating
Reel Type	Manual, Swing
Mounting Type	Wall or Cabinet Mounted
