FOC-HR-09 Manual Swing Square Frame Fire Hose Reel

Model: FOC-HR-09

Product Highlights

Rigid square frame maximizes airflow to keep the hose dry.
Durable frame with a rust-resistant powder finish.
Includes premium layflat hoses with LPCB, UL, or FM options.
Optional nozzles feature precise SHUT, JET, and SPRAY modes.
Swing arm ensures snag-free, multi-directional hose payoff.
The entire assembly can be customized to exact project specs.

Product Description

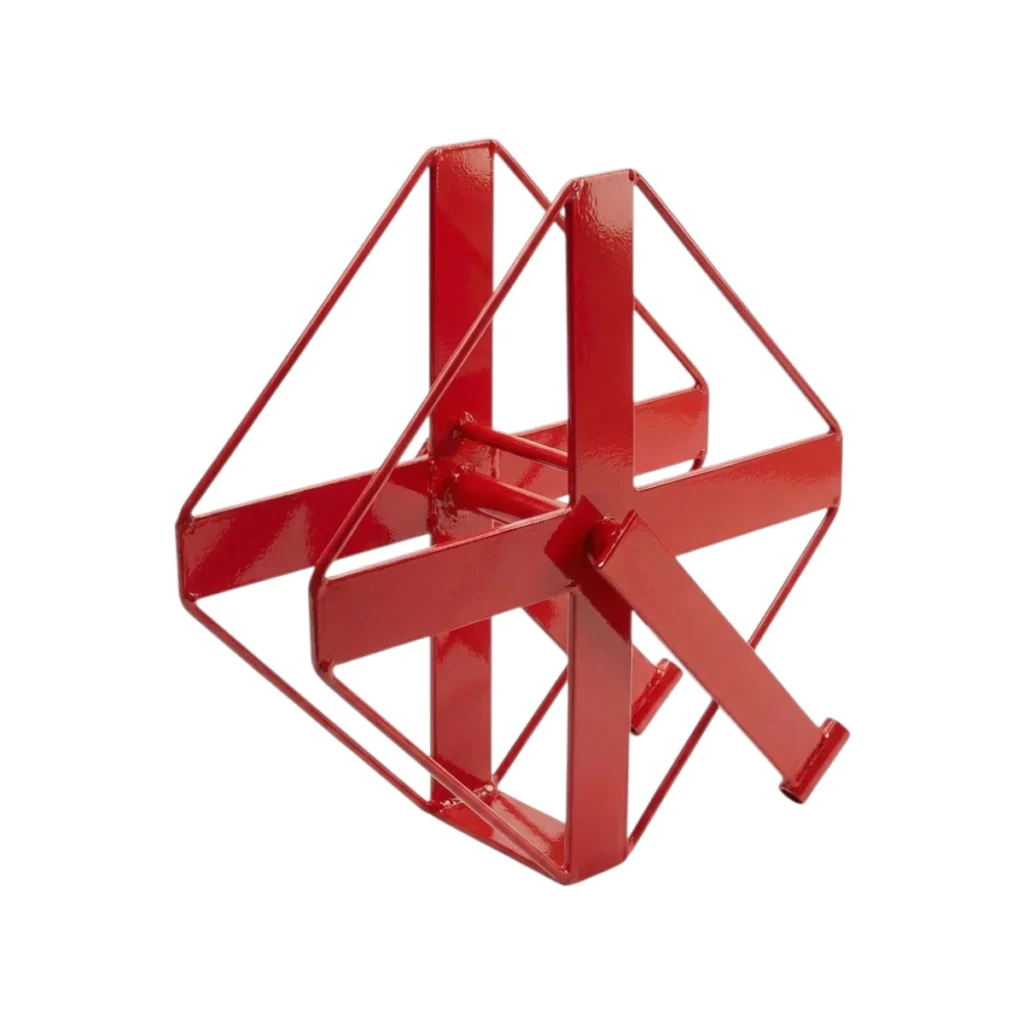

The FOC-HR-09 manual swing-type fire hose reel features a lightweight square frame engineered to accommodate layflat hoses in wall or cabinet installations. Designed to combat Class A fires (wood, paper, and textiles) in commercial and industrial settings, it delivers an immediate, controlled water supply. The drum is constructed with reinforced crisscross spokes, ensuring high structural rigidity while minimizing equipment weight. Large hollow sections maximize airflow to keep the stored hose dry and well-maintained. A space-saving swing-arm mechanism pivots the drum outward, enabling smooth, snag-free hose payoff in any direction. When idle, it folds flat against the mounting surface to keep corridors completely unobstructed. Treated with a corrosion-resistant powder coating (available in red or white), the entire assembly can be fully customized with specialized layflat hoses, couplings, nozzles, and valves to meet exact project specifications.

Technical Specifications

Capacity	1 1/2’’ -2 1/2'' x 30m
Side Plate	300x300mm, 380x380mm
Working / Test Pressure	16 Bar / 24 Bar
Material	Carbon Steel
Surface	Powder Coating
Reel Type	Manual, Swing
Mounting Type	Wall or Cabinet Mounted
