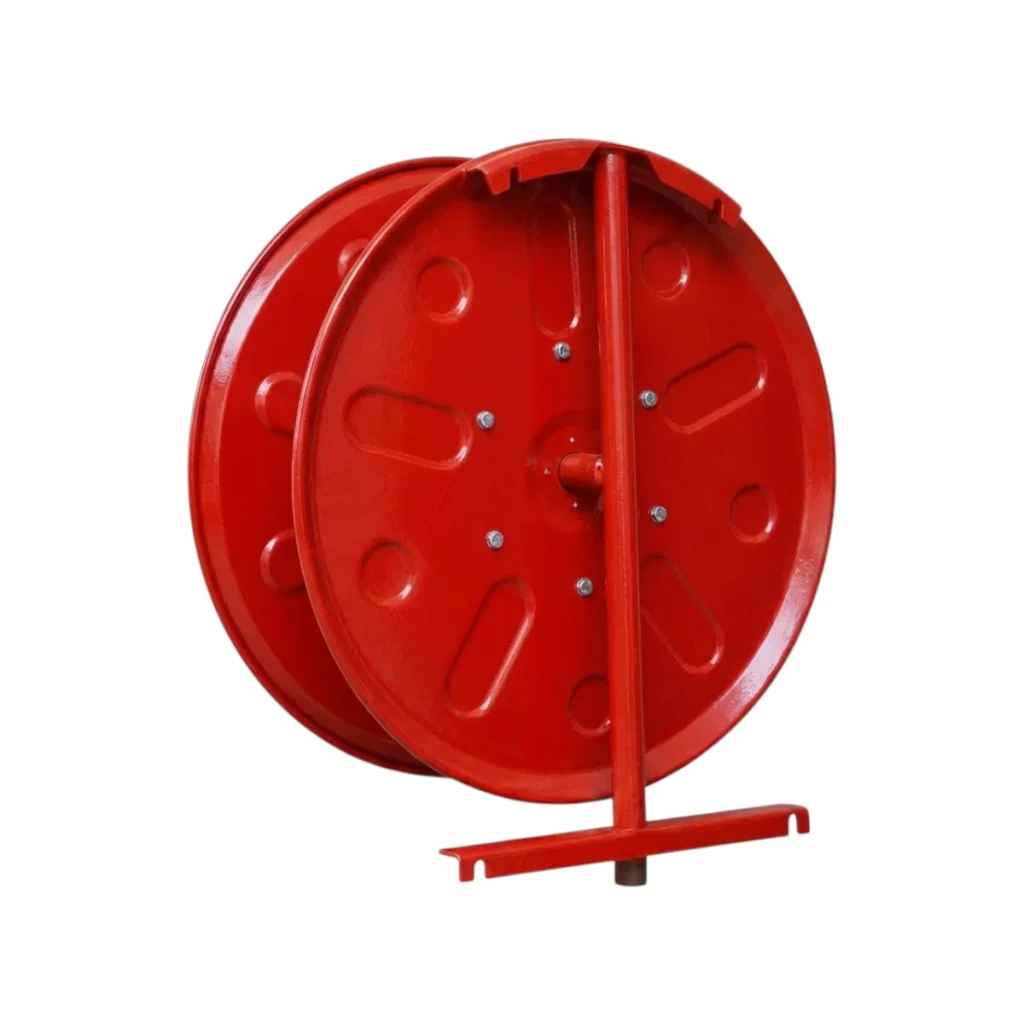

FOC-HR-11 Manual Fixed Fire Hose Reel

Model: FOC-HR-11

Product Highlights

Heavy-duty frame with a rust-resistant powder finish.
Includes an EN694 and LPCB compliant semi-rigid hose.
Optional nozzles support precise SHUT, JET, and SPRAY modes.
Fixed design is ideal for narrow corridors and high-traffic areas.
Supplied as a complete, ready-to-mount assembly.
The entire assembly can be customized to exact project specs.

Product Description

The FOC-HR-11 manual fixed fire hose reel is engineered for wall-mounted installations to accommodate 3/4-inch (19mm) or 1-inch (25mm) semi-rigid fire hoses. Highly suitable for facilities with restricted space or a constant hose deployment direction, it delivers an immediate, controlled water supply for effective early-stage fire suppression. Constructed from heavy-duty pressed steel discs, the robust frame is built to withstand physical impact and rigorous daily use while ensuring structural stability and low long-term maintenance. The unit is finished with a protective red powder coating for maximum corrosion resistance and high visibility, with an option to upgrade to stainless steel discs for specialized or highly corrosive environments. To meet exact engineering specifications, the entire assembly can be fully customized with tailored semi-rigid hoses, couplings, discharge nozzles, and control valves.

Technical Specifications

Capacity	3/4’’ x 30m, 1'' x 30m
Side Plate	480 / 550 / 600mm
Working / Test Pressure	12 Bar / 18 Bar
Material	Carbon Steel
Surface	Red Powder Coating
Reel Type	Manual, Fixed
Mounting Type	Wall Mounted
