FOC-HR-13 Manual Rewind Live Fire Hose Reel

Model: FOC-HR-13

Product Highlights

Delivers instant water flow without full hose unspooling.
Robust "A" frame easily supports heavy, water-filled hoses.
Direct-drive hand crank enables fast, single-operator rewind.
UV- and salt-resistant powder coating protects against harsh wear.
Designed for both fixed industrial and mobile vehicle mounting.
The entire assembly can be customized to exact project specs.

Product Description

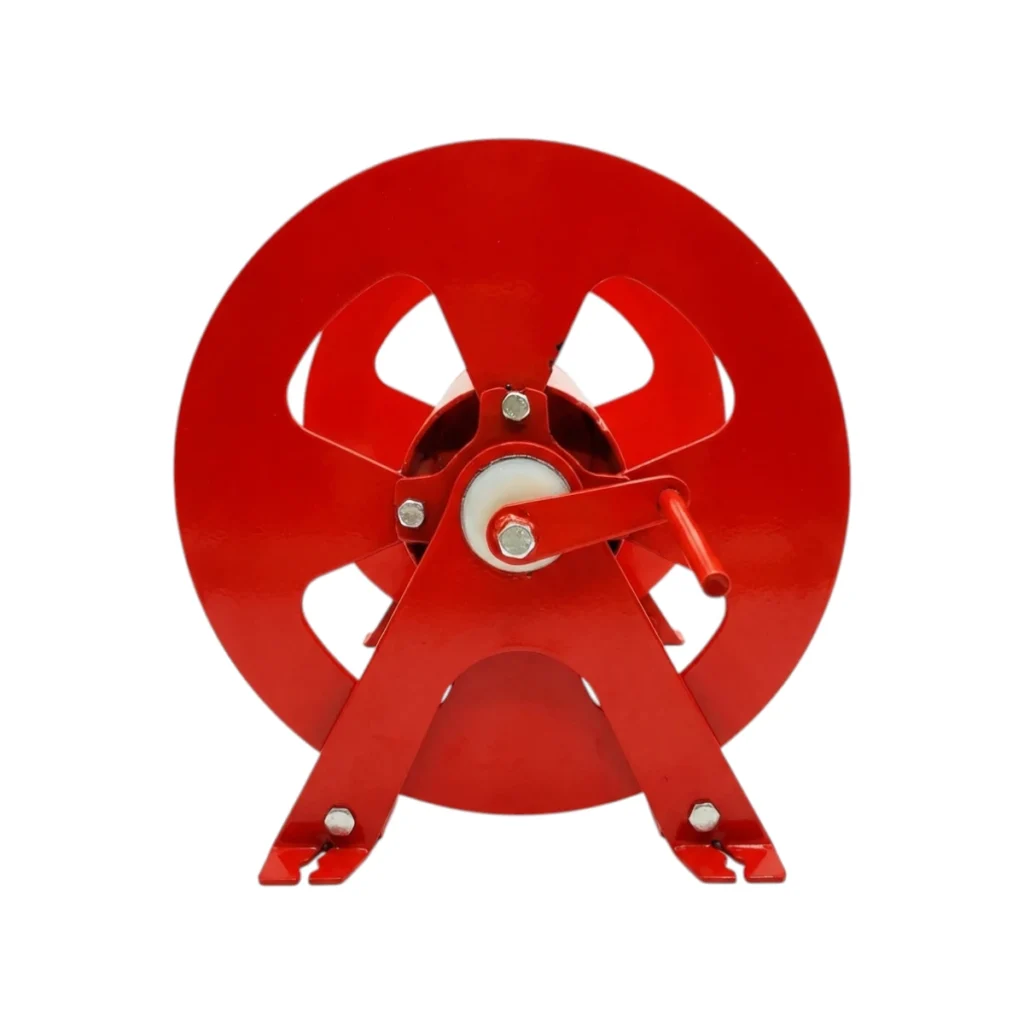

The FOC-HR-13 manual rewind live fire hose reel features a heavy-duty hand crank mechanism engineered to manage long semi-rigid hoses for high-volume water delivery. An integrated rotary joint keeps the system fully charged, ensuring an immediate, continuous water supply at any deployed length without the need for complete unspooling. The sturdy “A” frame base provides exceptional strength to support heavy, water-filled hoses, while a low-profile outlet riser and open drum design guarantee a flat, non-crimping hose wrap. Constructed from durable carbon steel with a premium UV- and corrosion-resistant powder coating, this rugged unit is ideal for demanding applications like mobile rescue vehicles, petrochemical plants, and offshore platforms. To satisfy precise engineering specifications, the entire assembly can be fully customized with tailored hoses, adapters, nozzles, and control valves.

Technical Specifications

Capacity	3/4’’ x 75m, 1'' x 45m, 1 1/2’’ x 30m
Side Plate	600mm
Working / Test Pressure	12 Bar / 18 Bar
Material	Carbon Steel
Surface	Powder Coating
Reel Type	Manual, Rewind Live
Mounting Type	Fixed or Mobile Mounting
